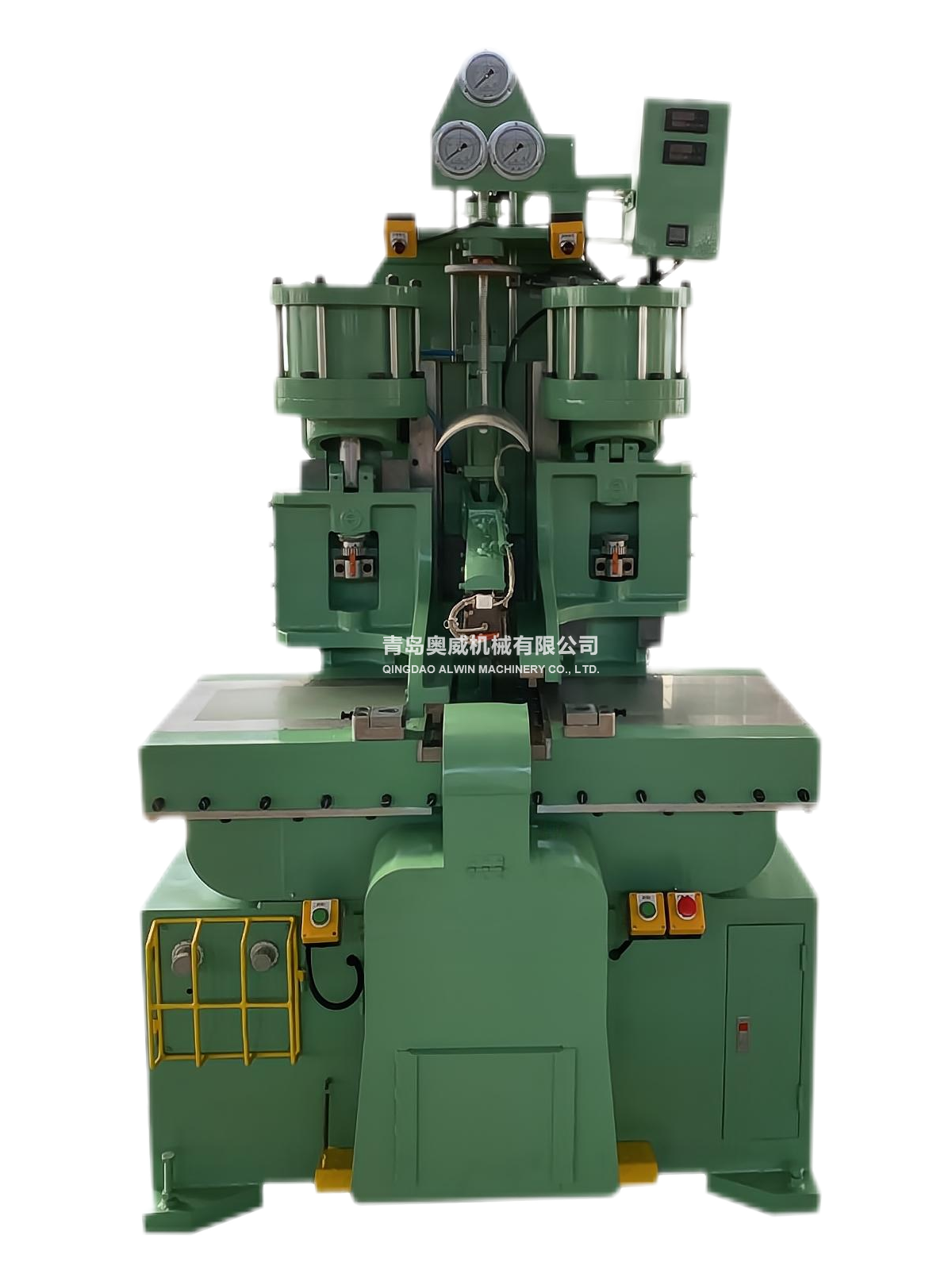

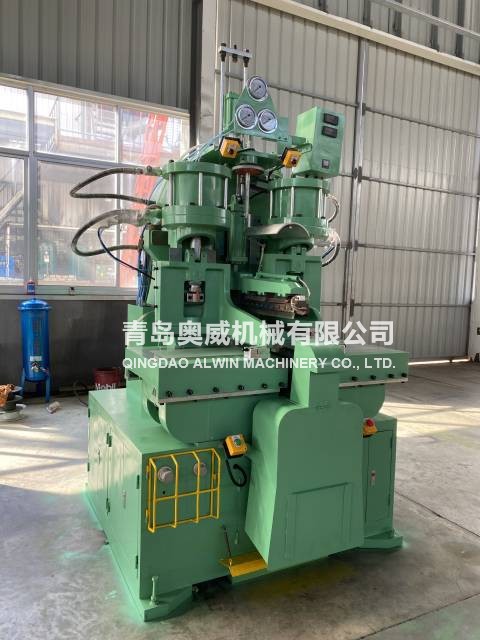

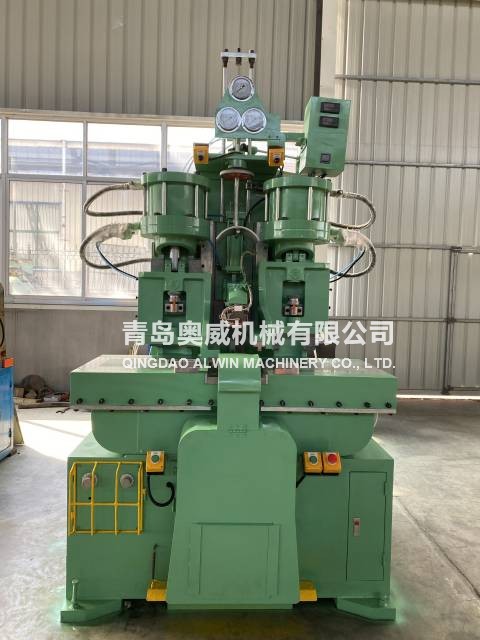

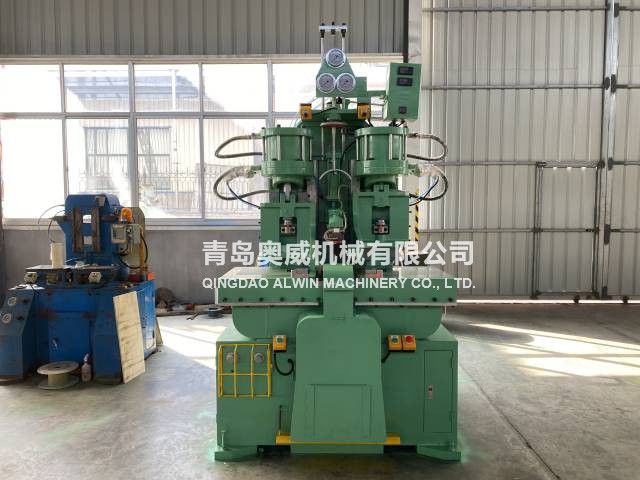

型號 MODEL | #220(H) | #180 | #300 | #350(H) | #540 |
最大接合幅寬 MAX. SPLICING WIDTH | 135mm | 110mm | 200mm | 260mm | 480mm |
接合最小周長 MIN. SPLICING CIRCUMFERENCE | 720mm | 350mm | 450mm | 1060mm | 1340mm |
適用規(guī)格 VEHICLE TYPES | B/C & M/C | M/C,B/C,I/C,S/C | S/C,L/T | L/T | 8.25-20-12.00-20 |
接合氣缸內徑 ID. OF SPLICING CYLINDER | φ200mm | φ200mm | φ250mm | φ250mm | φ300mm |
接合油缸內徑 ID OF SPLICING OIL CYLINDER | (φ80mm) | / | / | (φ125mm) | φ125mm |
刀砧動作 CUTTING DRILLING OPERATION | 上下式 Up/Down | 伸縮式 Extend/Retract | 伸縮式 Extend/Retract | 上下式 Up/Down | 上下式 Up/Down |
切刀動作 CUTTER ACTION | 垂直兩段式 Vertical 2-STEPS | 垂直兩段式 Vertical 2-STEPS | 垂直兩段式 Vertical 2-STEPS | 垂直兩段式 Vertical 2-STEPS | 垂直兩段式 Vertical 2-STEPS |
壓縮空氣壓力 AIR PRESSURE | 7~12kg/cm2 | 7~12kg/cm2 | 7~12kg/cm2 | 7~12kg/cm2 | 7~12kg/cm2 |
最大使用油壓 MAX. OIL PRESSURE | (30kg/cm2) | / | / | (60kg/cm2) | 60kg/cm2 |
接合壓力(空壓) SPLICING FORCE (AIR) | 2190kg | 2190kg | 3430kg | 3430kg | / |
接合壓力(油壓) SPLICING FORCE (OIL) | (2950kg) | / | / | (7110kg) | 8620kg |
單條生產(chǎn)時間(sec/per cycle) PRODUCTION TIME | 11 | 13 | 18 | 18 | 40 |
機械尺寸長寬高(mm) MACHINE DIMENSION LxWxH | 990x1080x1980 | 1590x1100x2350 | 1550x1200x2350 | 1240x1230x2240 | 1170x1400x2570 |
